Solar Drip Irrigation System Kit, Automatic Watering, 30 Modes, 7 Timers | Welvere

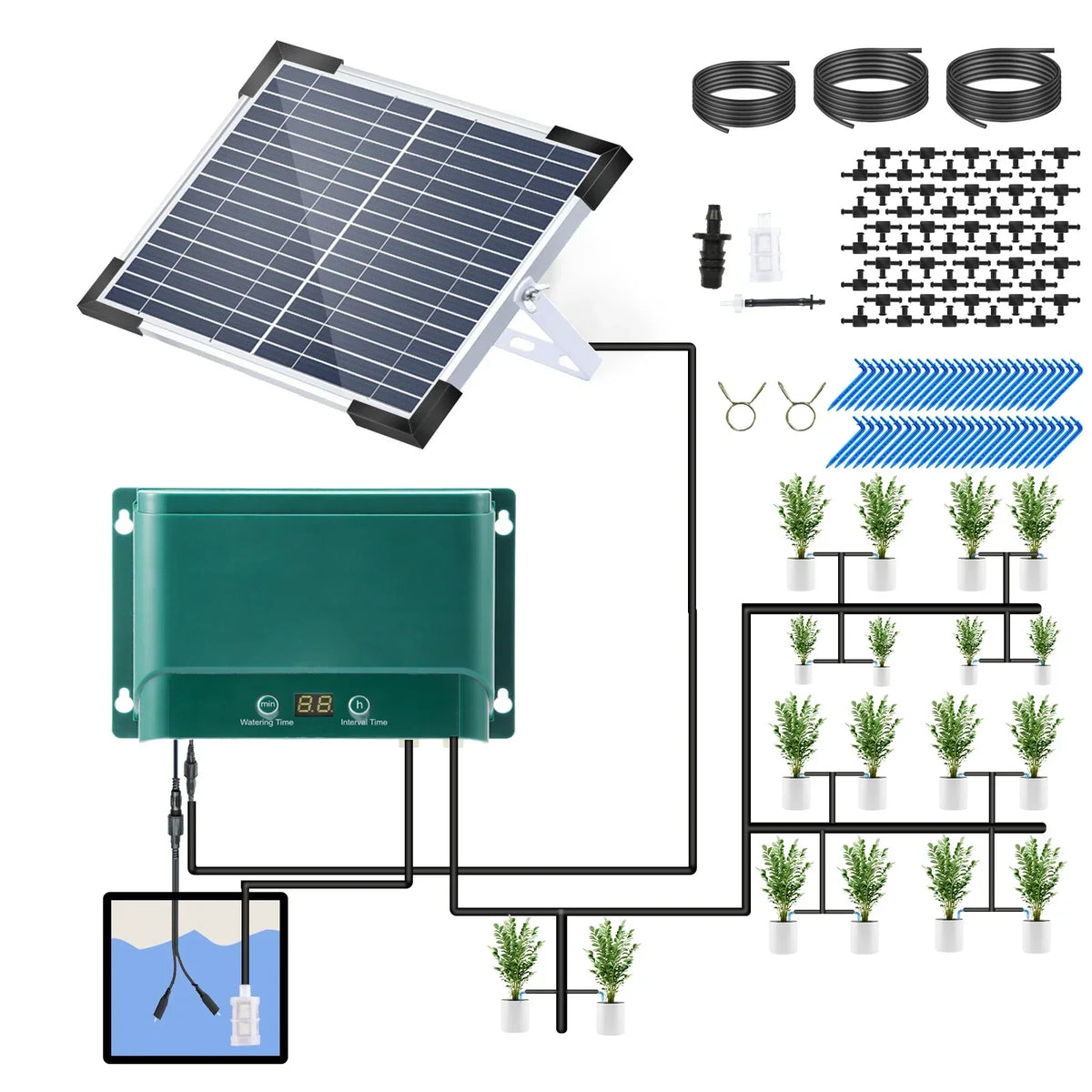

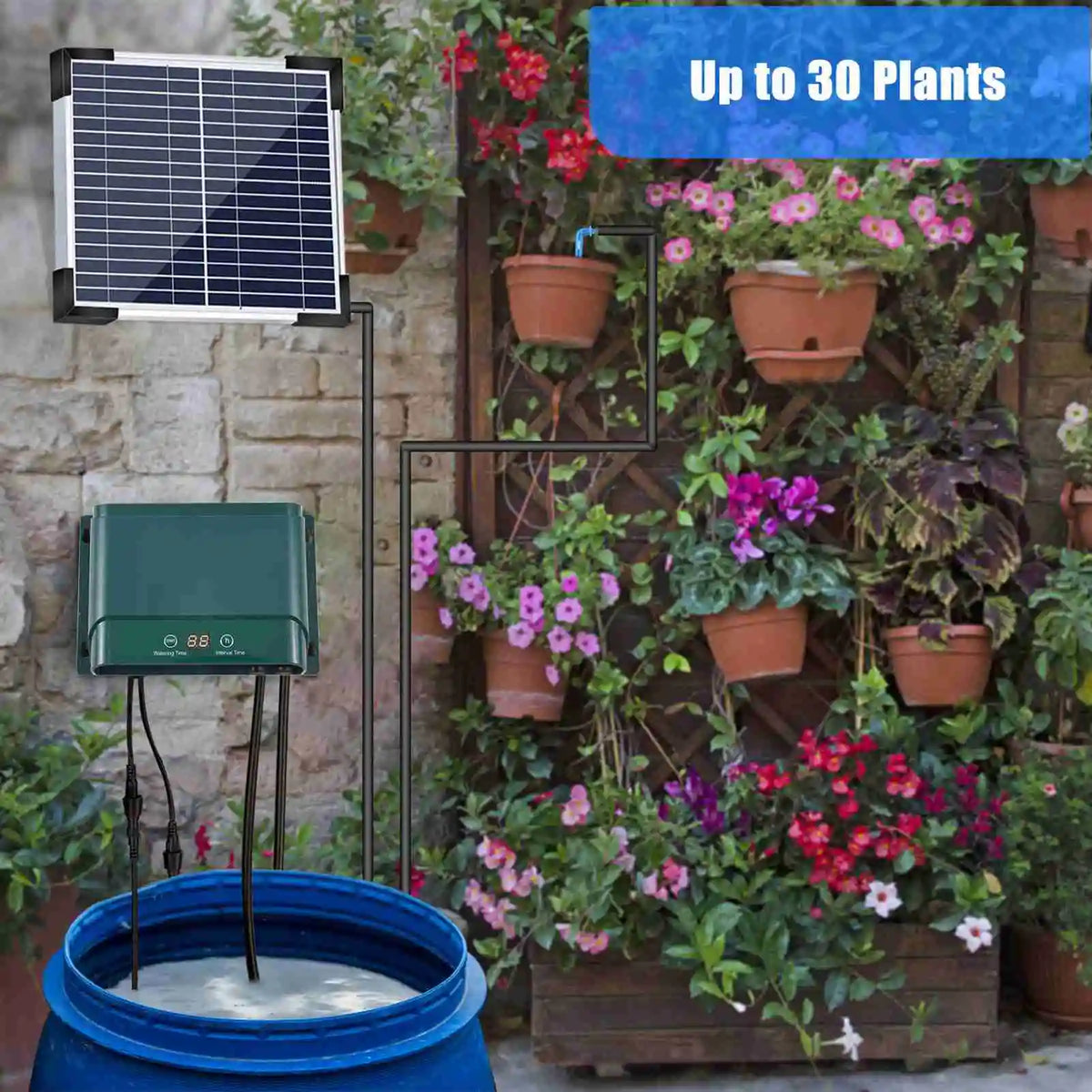

This solar-powered drip irrigation system is designed for balconies, patios and small gardens. It can irrigate up to 50 plants with the included pipes and drippers, and offers 30 watering modes and seven timer settings for choosing cycle duration and watering intervals.

The system uses an 18V / 10W polycrystalline silicon solar panel and a rechargeable 11.1V 2200mAh Li-ion battery. Its controller has water-level detection and protection features for water level, motor and battery.

Watering modes and timing

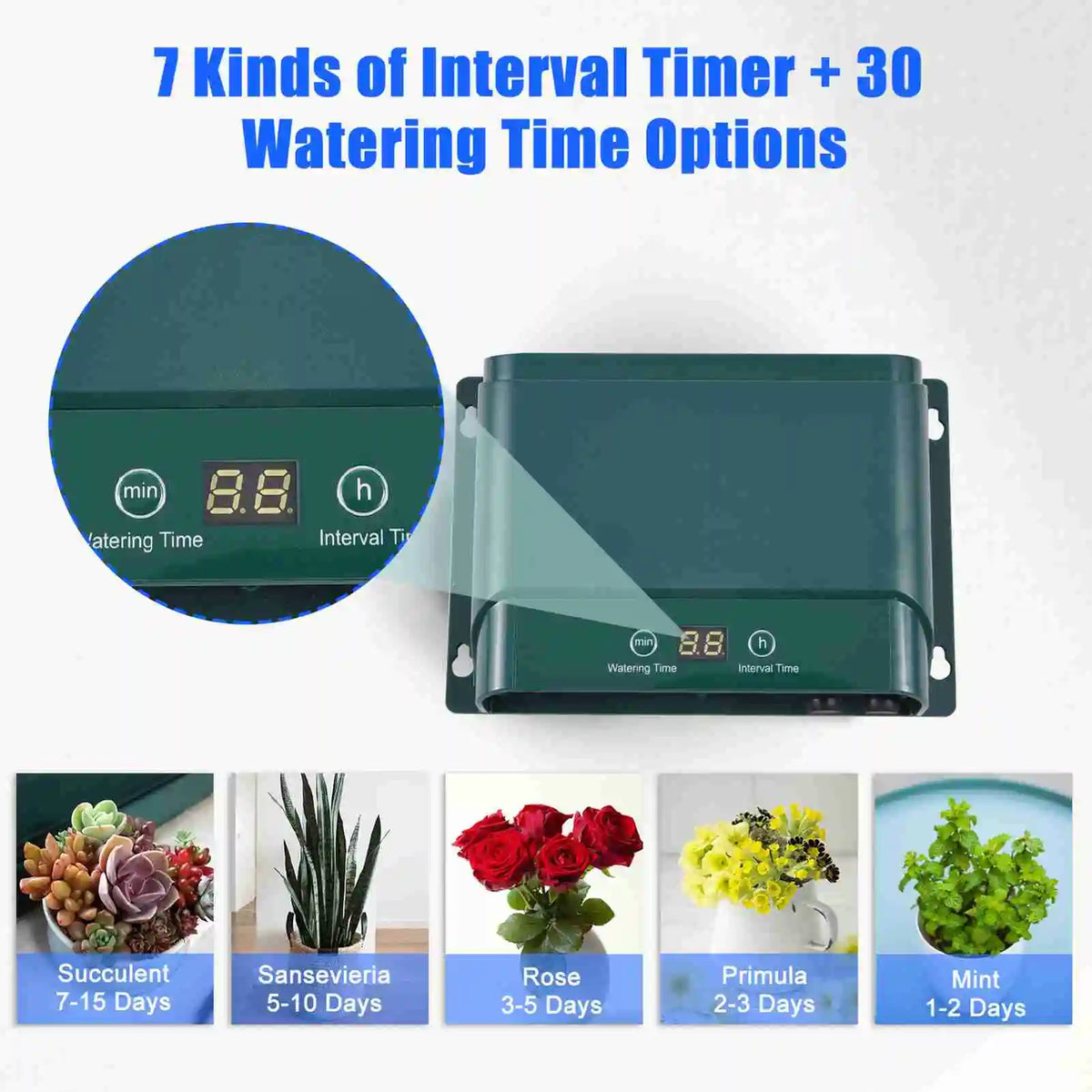

Choose from 30 adjustable watering modes, with cycle durations from 1–30 min. The seven timer settings are 3h, 6h, 12h, 1d, 2d, 3d and 7d; the timing interval range is 3h–7d.

Solar power and pump

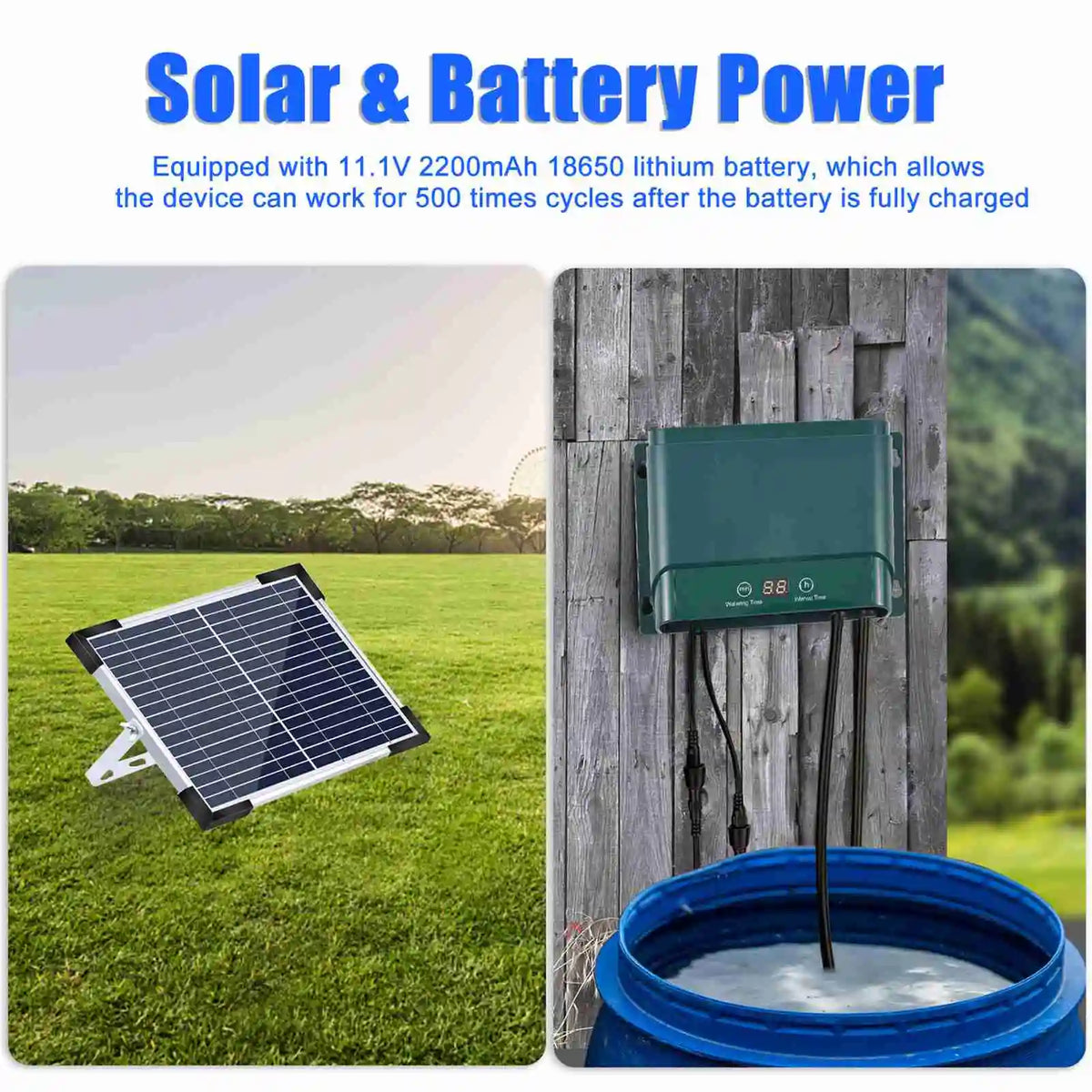

The 18V / 10W solar panel is made from polycrystalline silicon and measures 35 × 23.5 × 1.5 cm. Solar charging time is 4–5 h. The rechargeable battery is an 11.1V 2200mAh Li-ion type, with a stated 500 cycle life.

The pump is rated at 5W and 12V DC. Its flow rate is 2000 ml/min, with a maximum water flow of 2 L/min.

Specifications

• Product type: Solar drip irrigation system kit
• Shell material: ABS
• Colour: Dark green
• Controller size: 16.6 × 11.4 × 4.7 cm
• Operating temperature: –10°C to 45°C
• Weight: 1.7 kg (controller); 138 g (battery module)
• Drippers: 50, blue, 10 × 5 cm

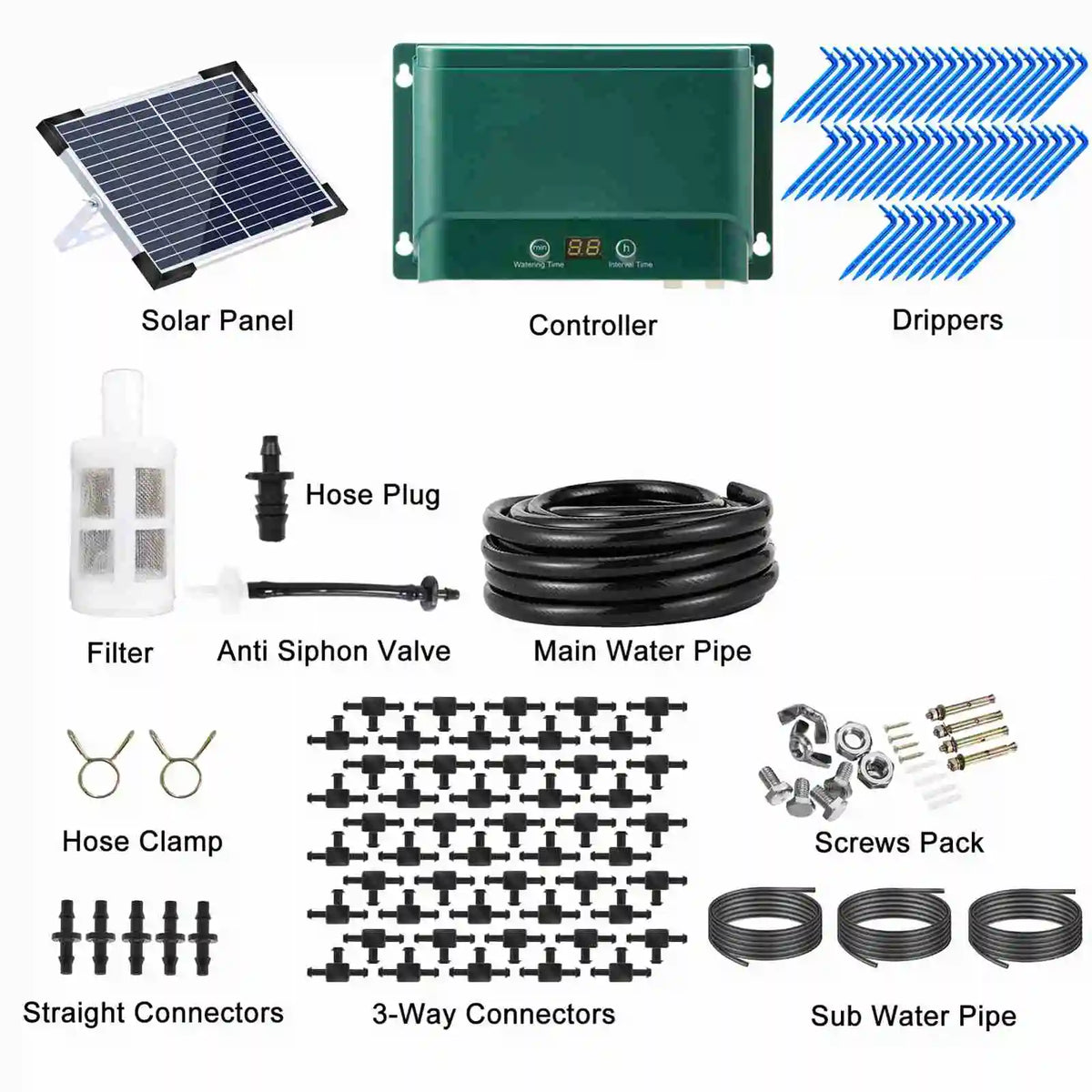

Included components

The kit includes components for arranging drip irrigation to up to 50 plants.

• Solar panel, controller and bracket
• 5 m main water pipe and 5 × 10 m distribution pipes (5 sub-pipes)
• 50 drippers
• Connectors, anti-siphon valve, puncher, pipe plug, clamps and filter
• Screws and instruction manual

Additional specifications

• Controller ingress-protection rating: IP65.
